Outdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCH

Outdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCH

Description :

GJYXFCH(1core/2core/4core)

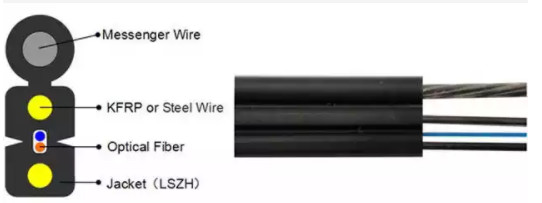

The optical fiber unit is located in the center. Two parallel FRP
(or steel wire) are placed on both sides. Steel wires as additional
strength members will also be used. Then the cable is finished with
black or white LSZH sheath

Number of optical fibers	1/2/4 core
Fiber type	Single mode G657A
Stiffener	Material Science	Steel wire/FRP/KFRP
	diameter	0.45/0.5/0.5mm
Self supporting suspension wire	Material Science	steel wire
	diameter	1.0mm
Outer sheath	Material Science	Low smoke halogen-free flame retardant or PVC
Wire diameter	2.0×5.0(±0.2)mm

project		Product Description
stallation temperature range(°C)		-20+60
Operating and transport temperature(°C)		-20+70
Minimum bending radius(mm)	Long term	15D
Minimum bending radius(mm)	Short term	30D
Minimum allowable tensile strength (N)	Long term	400
Minimum allowable tensile strength (N)	Short term	660
Crushing load (N/100 mm)	Long term	1000
Crushing load (N/100 mm)	Short term	2200

Product features:

Special low bending sensitivity fiber provides high bandwidth and
excellent communication transmission performance.

Two sub FRP strength members ensure good crushing resistance to
protect the fibers.

With simple structure, light weight and strong practicability, it
is suitable for 1 to 4 core SM indoor and outdoor FTTH wiring.

The novel flute design is easy to peel and splice, simplifying
installation and maintenance.

Low smoke, zero halogen and flame retardant jacket.

As an additional strength member, a single steel wire ensures good
performance of tensile strength

Outdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCH
